Linear Transfer Manipulator Tandem Stamping Line – High‑Speed Automated Stamping for Automotive Sheet Metal

The competition in today's automotive market is fiercer than ever, with OEMs placing ever‑higher demands on component delivery speed and quality. Many automotive sheet metal factories are pursuing higher stamping cadences, as their old lines simply cannot keep up with order volumes. The linear transfer manipulator tandem stamping line has become the preferred choice for many plants upgrading to high‑speed automated stamping, and it has already been successfully deployed in a large number of automotive sheet metal workshops, delivering impressive operational results.

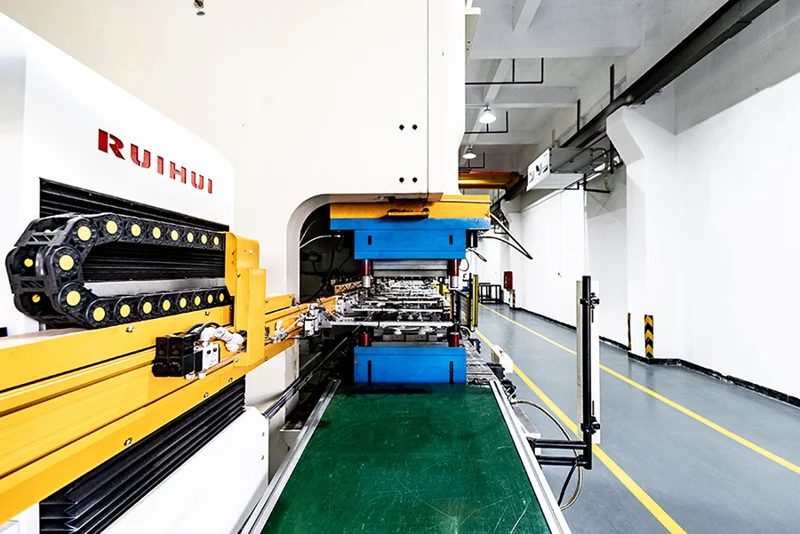

The tandem configuration of linear transfer manipulators is inherently suited to high‑speed operation. These two‑axis manipulators follow direct motion paths with no unnecessary movement, allowing them to transfer workpieces between multiple presses at very high speeds with extremely fast response. They easily match the high‑speed rhythm of large‑scale, continuous automotive sheet metal production. On many well‑running lines, the overall stamping cycle can achieve one part every few seconds, yielding substantial daily output—several times more efficient than manual handling or other transfer methods, fully meeting the delivery requirements of large orders. Moreover, the mechanical structure of the entire line has been optimized for rigidity, ensuring stable performance even during prolonged high‑speed, high‑frequency operation. The manipulators remain steady and do not drop parts or lose positioning, even at maximum speed.

Automotive sheet metal parts, especially outer panels, demand extremely high surface quality—any slight scratch or dent immediately renders them scrap. In the past, manual handling often left marks on the surface due to uneven grip strength, requiring extensive rework for surface finishing. The end‑effectors of the linear transfer manipulators are custom‑designed to match the curved contours of automotive panels, providing even surface contact and uniform pressure during gripping, leaving no marks. During high‑speed transfer, the motion is smooth and shock‑free, so the workpiece never wobbles or hits anything, resulting in perfectly undamaged stamped parts that can go directly to the painting process without additional surface treatment—saving a significant amount of rework effort.

The synchronization of the entire line is extremely well executed. The actions of the linear transfer manipulators and the presses are tightly interlocked: as soon as a press finishes its opening stroke, the manipulator immediately enters the die area, removes the part, delivers it to the next press, and quickly retracts, allowing the press to close and begin the next cycle with virtually no idle time. The central control system can also adjust the operating rhythm flexibly based on the characteristics of different parts. For more complex outer panels, the speed can be tuned to be gentler for safer handling; for simple shallow‑drawn parts, the speed is pushed to the maximum to fully utilize the line's capacity, accommodating various product requirements. Many lines are also equipped with full perimeter safety enclosures that separate the workpiece transfer area, eliminating safety hazards during operation and making shop‑floor management much easier.

Guangdong RuiHui Intelligent Technology Co., Ltd., as a national "Specialized, Refined, Distinctive, and Innovative 'Little Giant' Enterprise," has a team of over 80 R&D professionals and has accumulated deep technical expertise in the field of linear transfer manipulator tandem stamping lines. RuiHui's high‑speed tandem solutions have been deployed in many leading automotive sheet metal component suppliers, and extensive customer feedback confirms that the lines maintain excellent stability even during prolonged continuous production, fully meeting the high‑capacity delivery requirements of OEMs.

For factories aiming to achieve high‑speed automated stamping of automotive sheet metal, the linear transfer manipulator tandem stamping line is an ideal choice. With its stable high‑speed cadence and reliable workpiece transfer, it supports the high‑volume production of high‑quality automotive sheet metal, keeping the line running at peak efficiency and smoothness at all times.
